Lubrication system for piston

LUBRICATION SYSTEM FOR FOUNDRY

CUSTOMIZED SOLUTIONS
WITH EMULSIFYING OIL OR WATER
ECONOMIC AND HIGH QUALITY
TO GUARANTEE EFFICIENCY AND RELIABILITY

THANKS TO OUR EXPERIENCE
AND OUR LISTENING ABILITY
WE CREATE TAILORED LUBRICATION SYSTEMS
FOR YOUR SPECIFIC NEEDS

DO NOT WAIT
REQUEST YOUR QUOTE NOW AND DISCOVER
THE QUALITY OF OUR PRODUCTS!
LUBRICATION SYSTEM FOR PISTON
LUBRICATION SYSTEM FOR THREADING MACHINE
LUBRICATION SYSTEM PISTON DIA.160
LUBRICATION SYSTEM FOR SPRUE SAW

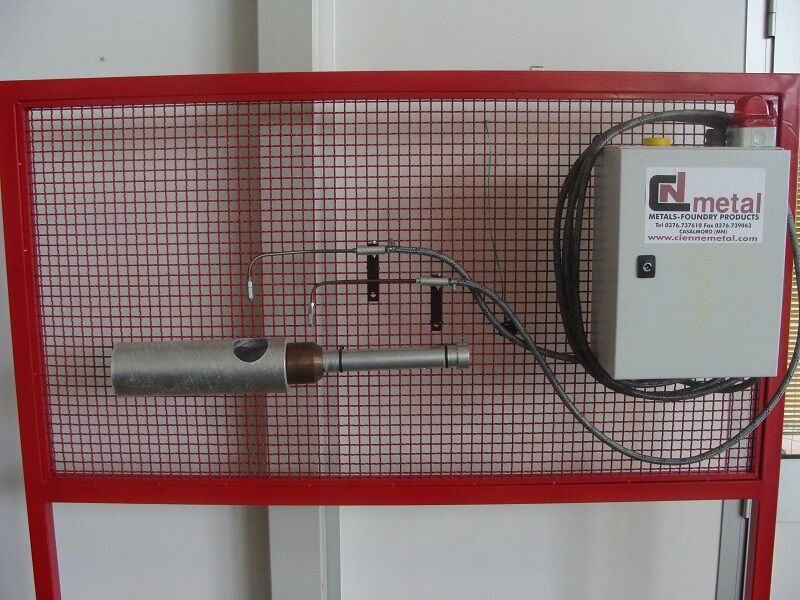

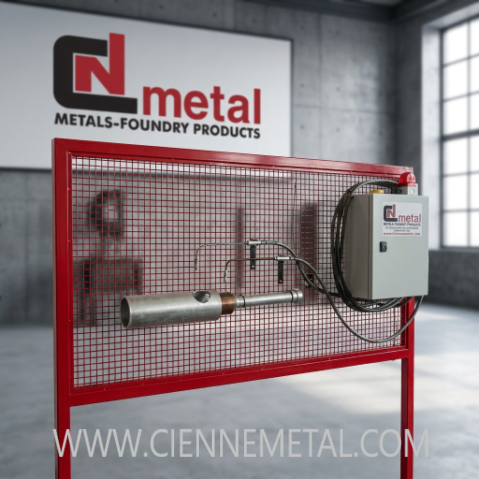

MINIMAL LUBRICATION SYSTEM FOR FOUNDRY PLUNGER

DROPS OR SPRAY OPERATION
EASY INSTALLATION WITH EVERY TYPE OF DIE-MACHINE
ADVANTAGES: SMOKLESS, NO NEED TO WIPE OIL UNDER THE
PRESS, PRATICALLY NONE!
DOSING EXAMPLE: PISTON DIA.100 MM = 4 DROPS OF LUBRIFICANT (ONLY 0,25 gr)

TECHNICAL FEATURES:
TANK 3,6 LT
VISUAL ALARM LACK OF LUBRICANT
OPERATION WITH 1 OR 2 INDIPENDENT NOZZLES
AIR COMPRESSED CONNECTION 4 - 8 BAR
CONNECTION WITH CONTROL PANEL OF THE DIE-MACHINE 24 DC

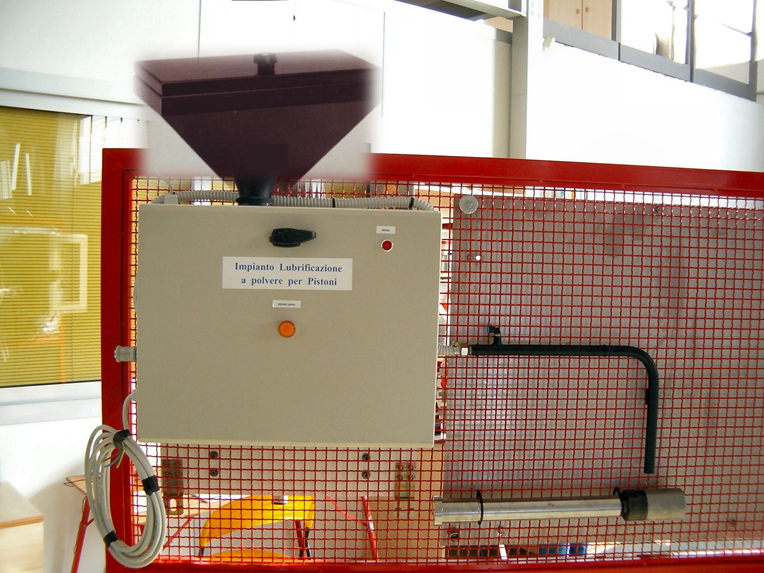

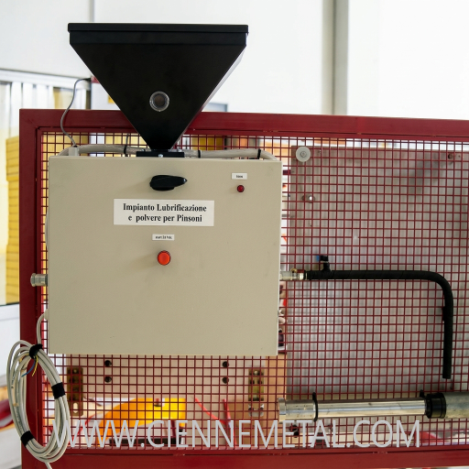

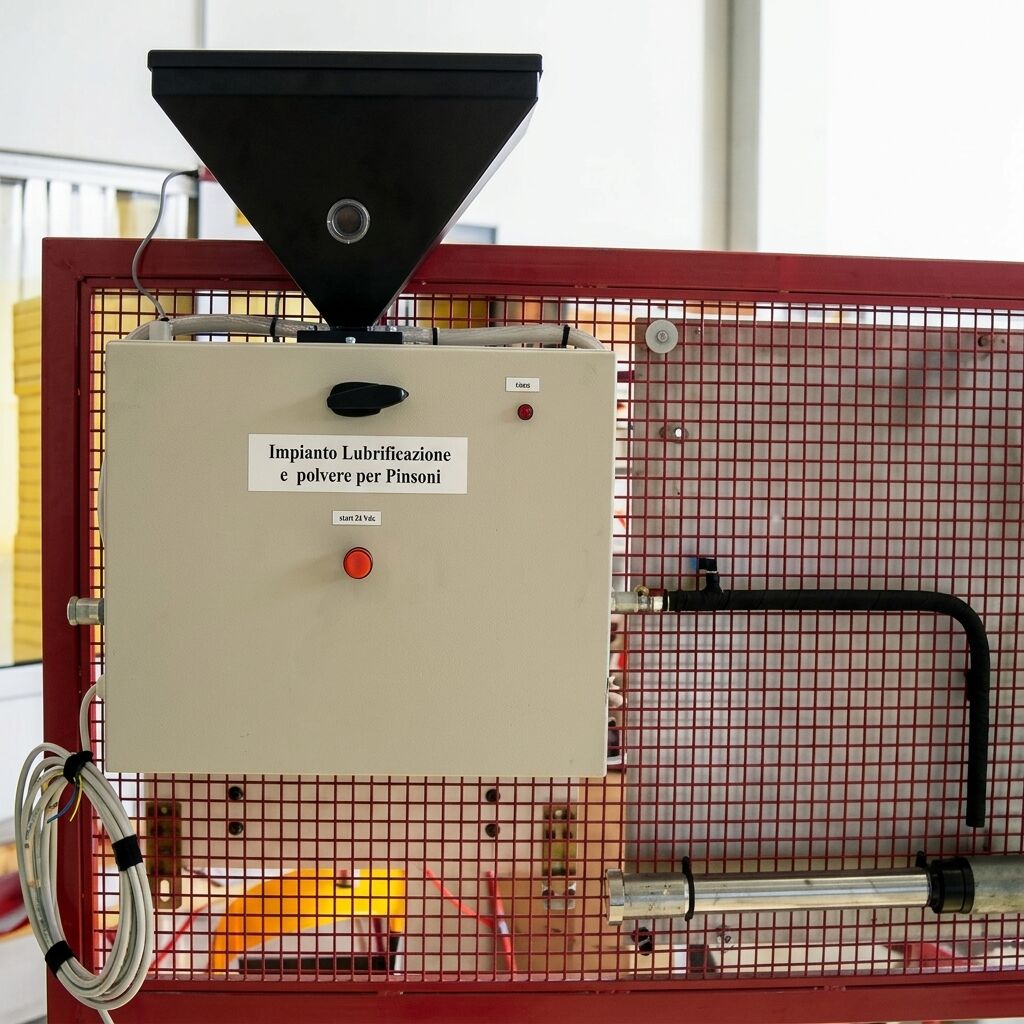

LUBRICATION SYSTEM FOR PISTON "LUBIX"


POWDER OPERATION

TECHNICAL FEATURES:
MINIMAL DOSAGE 0,2 GR POWDER
CONNECTION COMPRESSED AIR 4 - 8 BAR
CONNECTION WITH CONTROL PANEL OF THE DIE-MACHINE 24 DC

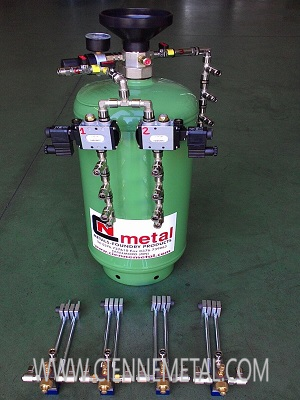

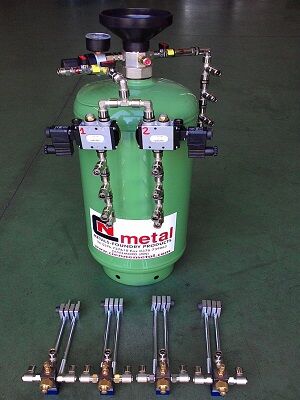

LUBRICATION SYSTEM  "4 NOZZLES"

LUBRICANT SYSTEM FOR MOLDING MACHINES


TECHNICAL FEATURES:
TANK 25 LT
WITH FLOW METER
ARTICULATION FOR SETTING
2 ELECTRO VALVES 24 DC
HIGH PRESSURE PIPES

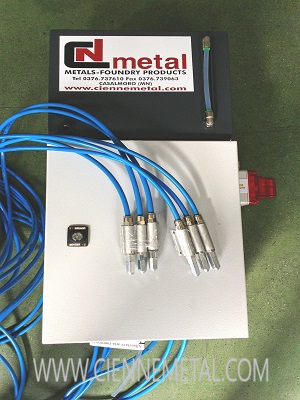

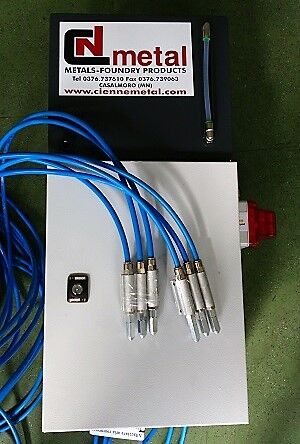

LUBRICATION SYSTEM  "6 NOZZLES"
MULTIFUNCTIONAL LUBRICANT SYSTEM

(EXAMPLE: TRIM MOLD, DIE CUTTER, BAND SAW,
RADIAL DRILL, PLASTIC MOLD, CUTTERS, ETC)

TECHNICAL FEATURES:
TANK 12 LT
VISUAL ALARM LACK OF LUBRICANT
MAGNETIC AND INDIPENDET TERMINALS
POSSIBILITY TO ADJUST TIME AND LUBRICANT QUANTITY
PIPES UP TO 6 METERS LENGTH
COMPRESSED AIR 6 BAR
OPERATION WITH EMULSIFIABLE WATER OR WHOLE OILS

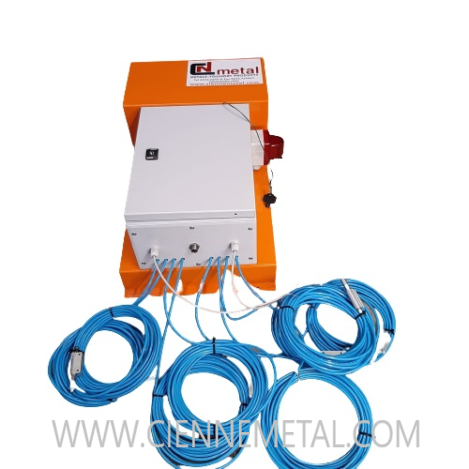

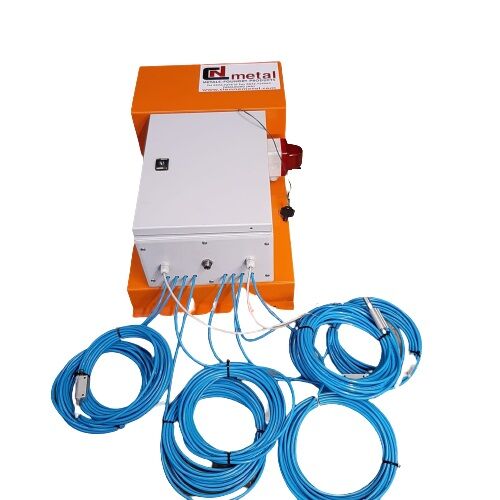

LUBRICATION SYSTEM  "8 NOZZLES"
MULTIFUNCTIONAL OPERATION

(EXAMPLE: DIE CUTTERS, BAND SAWS,
RADIAL DRILLS, PLASTIC MOLDS, CUTTERS, ETC)

TECHNICAL FEATURES:
TANK PE 15 LT
VISUAL ALARM LACK OF LUBRICANT
MAGNETIC AND INDIPENDET TERMINALS
POSSIBILITY TO ADJUST TIME AND LUBRICANT QUANTITY
PIPES UP TO 10 METERS LENGTH
COMPRESSED AIR 6 BAR
OPERATION WITH EMULSIFIABLE WATER OR WHOLE OILS

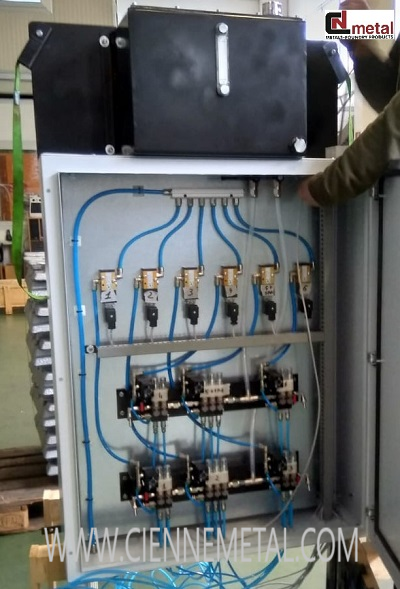

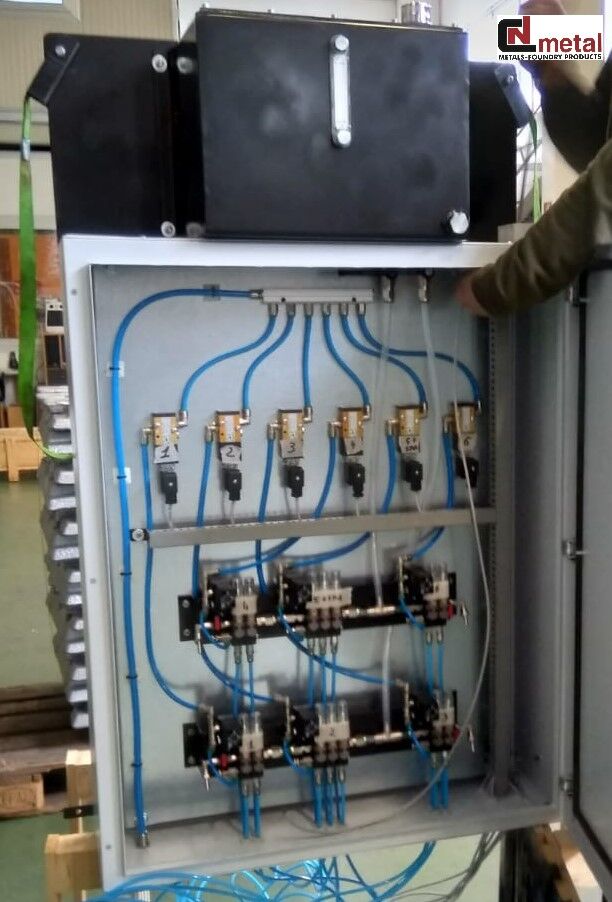

LUBRICATION SYSTEM  "14 NOZZLES"
LUBRICATION SYSTEM FOR AUTOMOTIVE ASSEMBLY SECTOR


TECHNICAL FEATURES:
TANK 36 LT
VISUAL ALARM LACK OF LUBRICANT
MAGNETIC AND INDIPENDET TERMINALS
POSSIBILITY TO ADJUST TIME AND LUBRICANT QUANTITY
PIPES UP TO 10 METERS LENGTH
COMPRESSED AIR 10 BAR
OPERATION WITH EMULSIFIABLE WATER OR WHOLE OILS

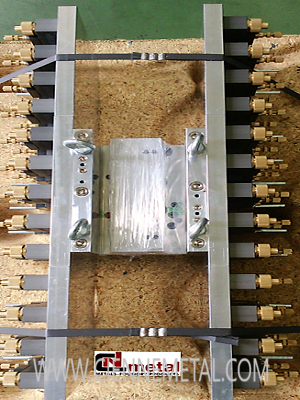

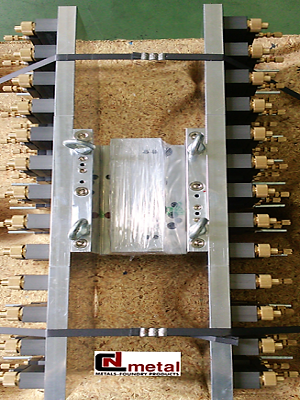

LUBRICATION HEAD "48 NOZZLES"



TECHNICAL FEATURES:
LUBRICATION SYSTEM 48 NOZZLES DOUBLE CIRCUIT
POSSIBILITY TO ADAPT THE PLATE
WITH EVERY KIND OF LUBRICATOR



TEST NOZZLES

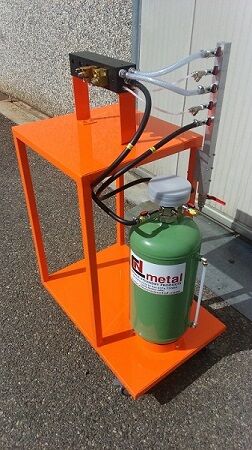

TEST BENCH FOR NOZZLES



TECHNICAL FEATURES:
POSSIBILITY TO CONNECT THE NOZZLES FOR
LIQUID EXIT/CLOSURE TEST AND OPERATION CHECK
