PRODUCTS > FOUNDRY SYSTEM
RELEASE AGENT MIXING SYSTEM
Wide range of mixing systems water-releasing
Ideal for producing high quality parts at low costsCustom made to the customer's requirements
These mixing systems are suitable for foundries from 1 to 20 presses
Thanks to their reliability and precision they guarantee excellent mixing of the water and the releasing agent allowing you to obtain perfectly finished
and high quality pieces
Request your quote now and find out how
CN METAL mixing plants can improve the productivity of your foundry

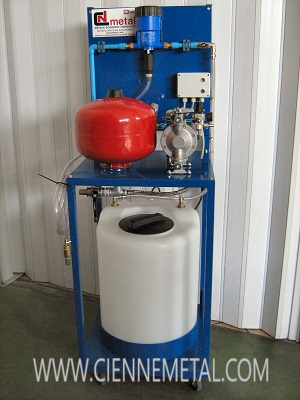

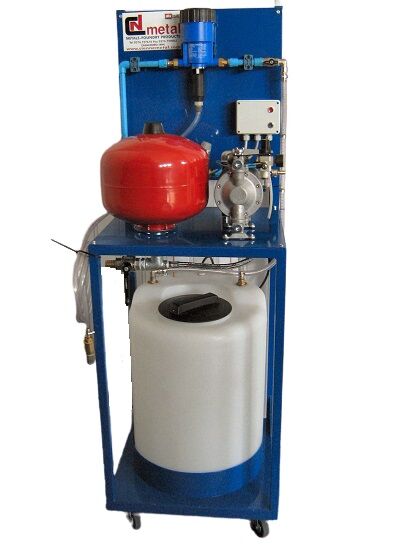

"SMALL" TYPE
Pneumatic pump and
accumulator 25 lt direct connection
to lubricator or
centralize tank.
Ideal for max 1-2
die-machines, fully automatic cycle
Technical features:
Pneumatic pump scale of
use 0,5-4% (max.2500 lt. /h)
Pneumatic filling pump
(max 4 bar)
By-pass button with
elettro valve 24 volt
Flow rate air pump
emulsion in 2 versions 50 lt. /min - 120 lt. /min

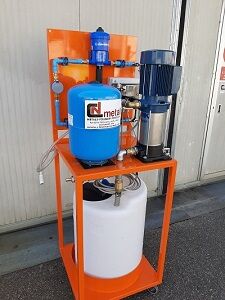

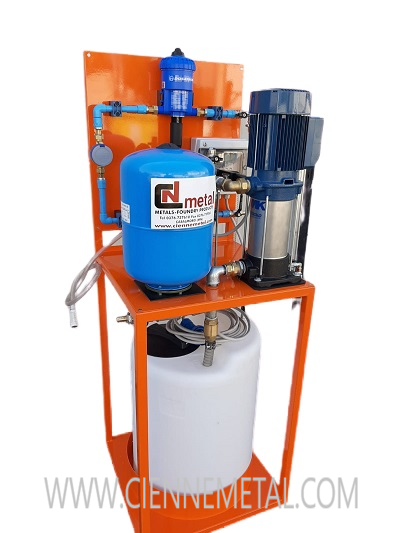

"SMALL PLUS" TYPE
Technical features:
Pneumatic pump scale of
use 0,5-4% (max.2500 lt. /h)
Electrical pneumatic
filling pump accumulator lt.25
Emulsion pump 50 lt.
/min with exit pressure 10 bar
OPTIONAL OPTIONAL: AVAILVABLE WITH PRESSURE 5,2 BAR

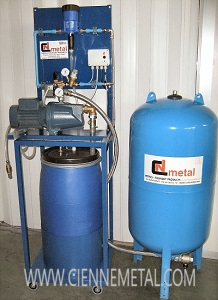

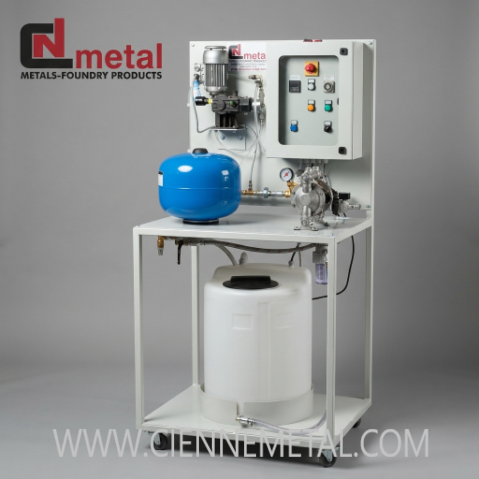

"BIG" TYPE
Mixing system
water-release agent with electric pump and
Lt.300 accumulator
direct connection to the lubricator or
Centralized tank, ideal
for max 8/10 die-machine, fully automatic cycle
Technical features:
Pneumatic pump scale of
use 0,5-4% (max.2500 lt. /h)
Electrical pneumatic
filling pump 200volt self priming
By-pass pump electro
valve 24volt
Flow rate elctric pump
400 lt/h

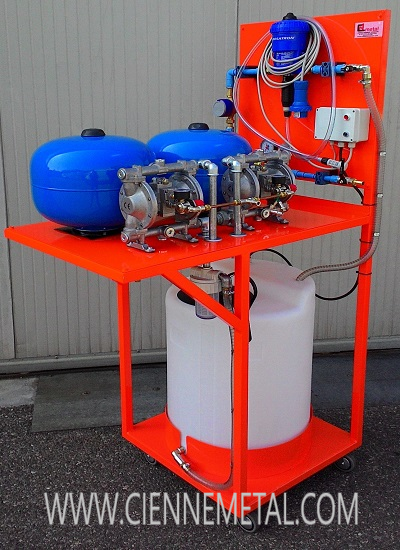

"DOUBLE" TYPE
Mixing system
water/release-agent with double pneumatic pump and 2 accumulators lt.25 each,
direct connection to the lubricator or to centralize tank, ideal for 4
die-machines tons 5000, fully automatic cycle
Technical features:
Pneumatic pump scale of
use 0,5-4% (max.2500 lt. /h)
Pneumatic filling pump
(max 4 bar)
By-pass button electro
valve 24volt
Flow rate pneumatic
pump emulsion 100 lt./min

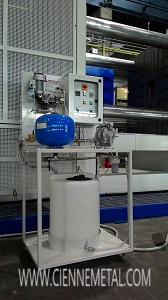

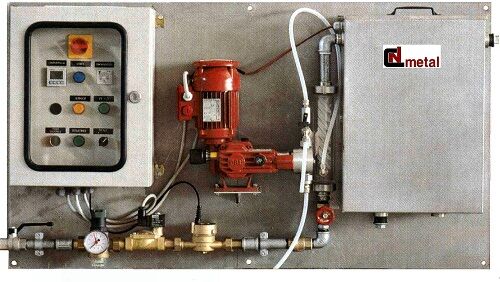

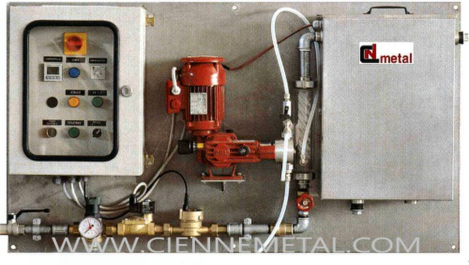

"DOSOMIX 35" TYPE
MADE FOR A COSTANT AND EXACT EMULSION
Perfectly for 10/20
die-machines
Flow rate lt.1500/h
With specimen
percentage in use diluition 0,2-6%
MODEL FOR MAX 2 PRESSES
With pneumatic pump and
accumulator lt.25
Capacity polyethylene
tank emulsion lt.100
Pneumatic filling pump
(max 4 bar)
Flow rate pneumatic
emulsion pump mulsione in 2 variations:
Lt.50/min - Lt.120/min

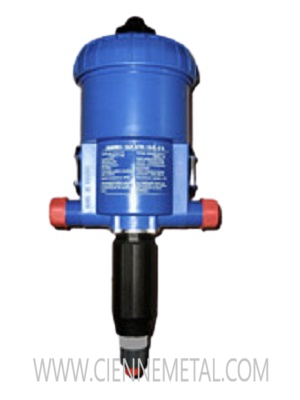

RELEASE-AGENT DOSATRON DOSING PUMP
Scale of use 0,5-4%
(max.2500 lt. /h of emusion) available
on request in various range of diluition and flow

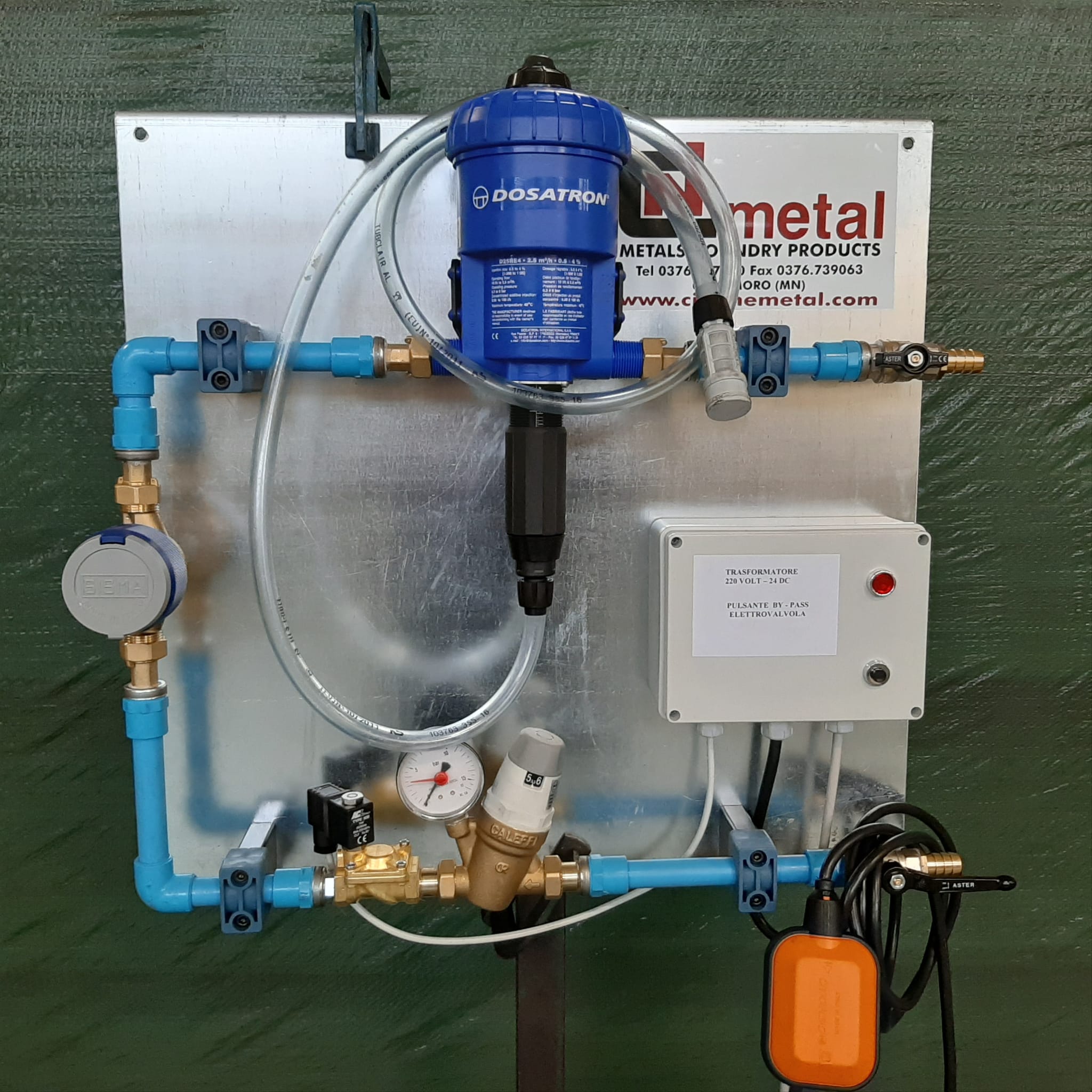

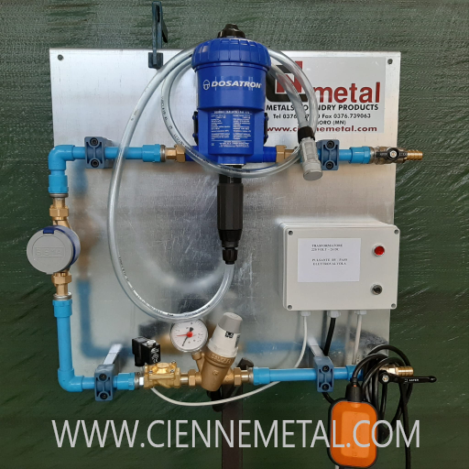

Possibile option pre-mounted plant dosatron pump with brass flow meter, electrovalve 24 dc Managed by float ball and liter counters
Electric panel with
transformer 220v/24dc and electrovalve by pass button
Fully automatic system
PUMP REVISION
In our company we make
revision and inspection
of DOSATRON and
pneumatic pums
PNEUMATIC PUMP
MODEL STANDARD 50 LT/MIN
MODEL BIG 120 LT/MIN
TRIPHASE CENTRIFUGAL PUMP
MODEL 3Cv 6,6 BAR PRESSURE
MODEL 6Cv 10 BAR PRESSURE

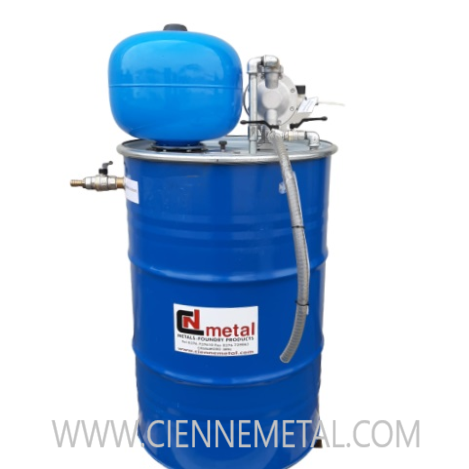

PRESSURIZED WATER/GRAPHITE DISTRIBUTION SYSTEM
Technical features:
Accumulator lt.25
Output product max 8 bar
Only connection compressed air to the pneumatic pump needed
Removable cover for inspection and drum cleaning
Flow rate pneumatic pump emulsion 50 lt/min
